Josh Touchscreen
Convenient Control

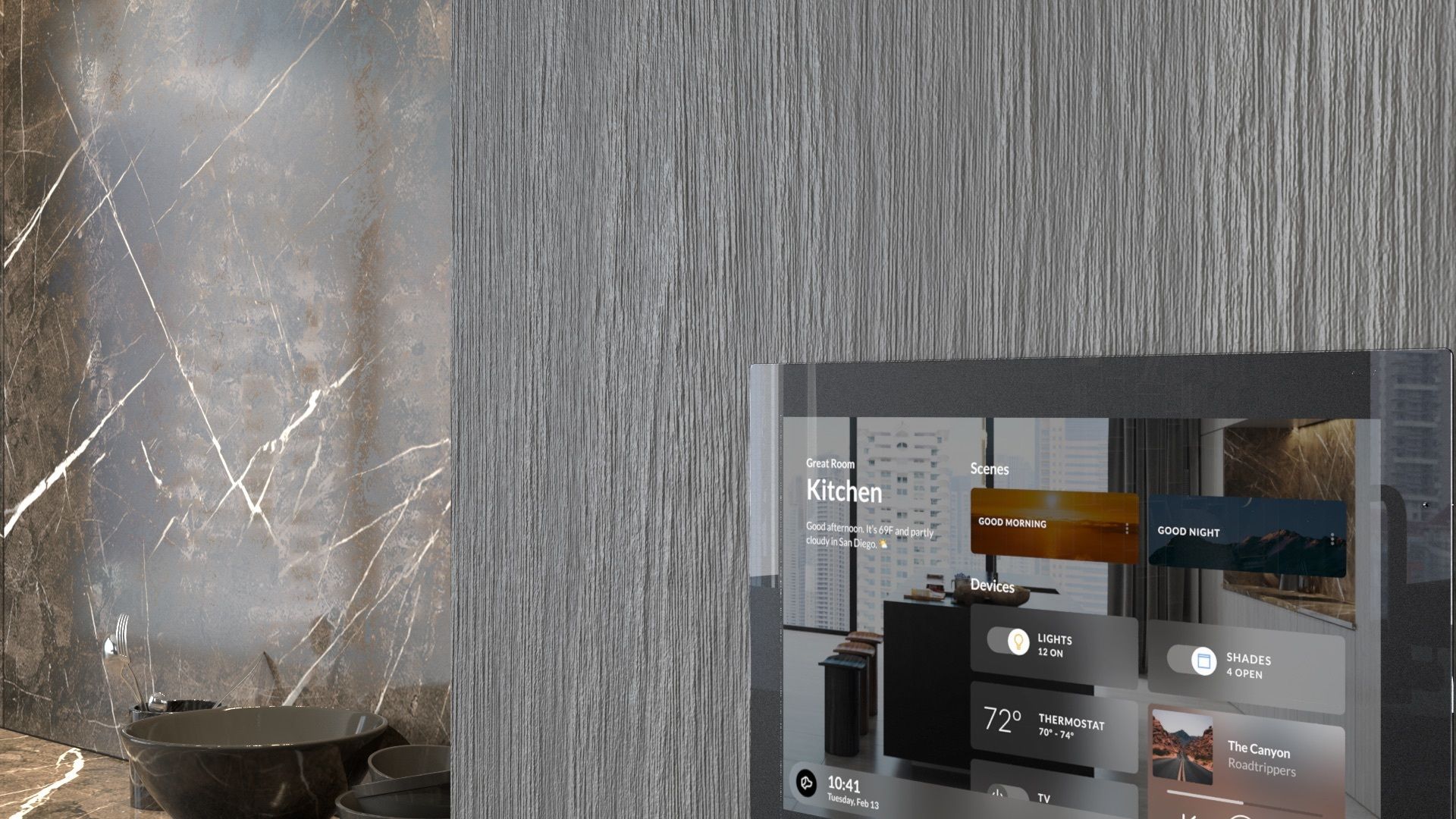

Everything in your smart home is exactly where it should be. Take control of your surroundings with a specially designed room-level view or easily access your entire property.
Premium Materials
Available in polished black and ceramic white finishes, the 8” high-performance IPS glass screen perfectly complements a modern home’s decor. The edge-to-edge display features capacitive touch, a quad-symmetric core processor, as well as proximity and light sensors.
Versatile Design

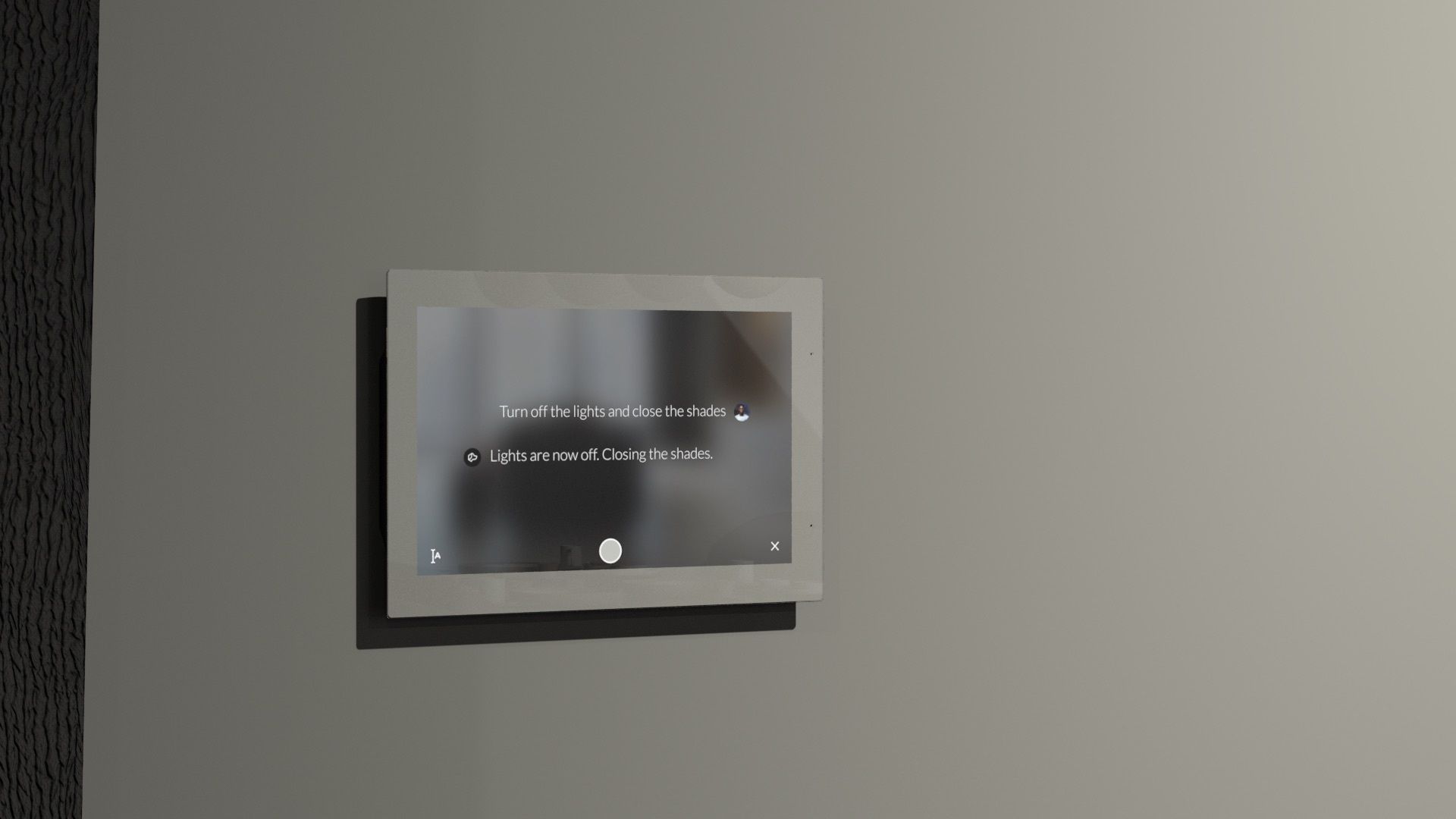

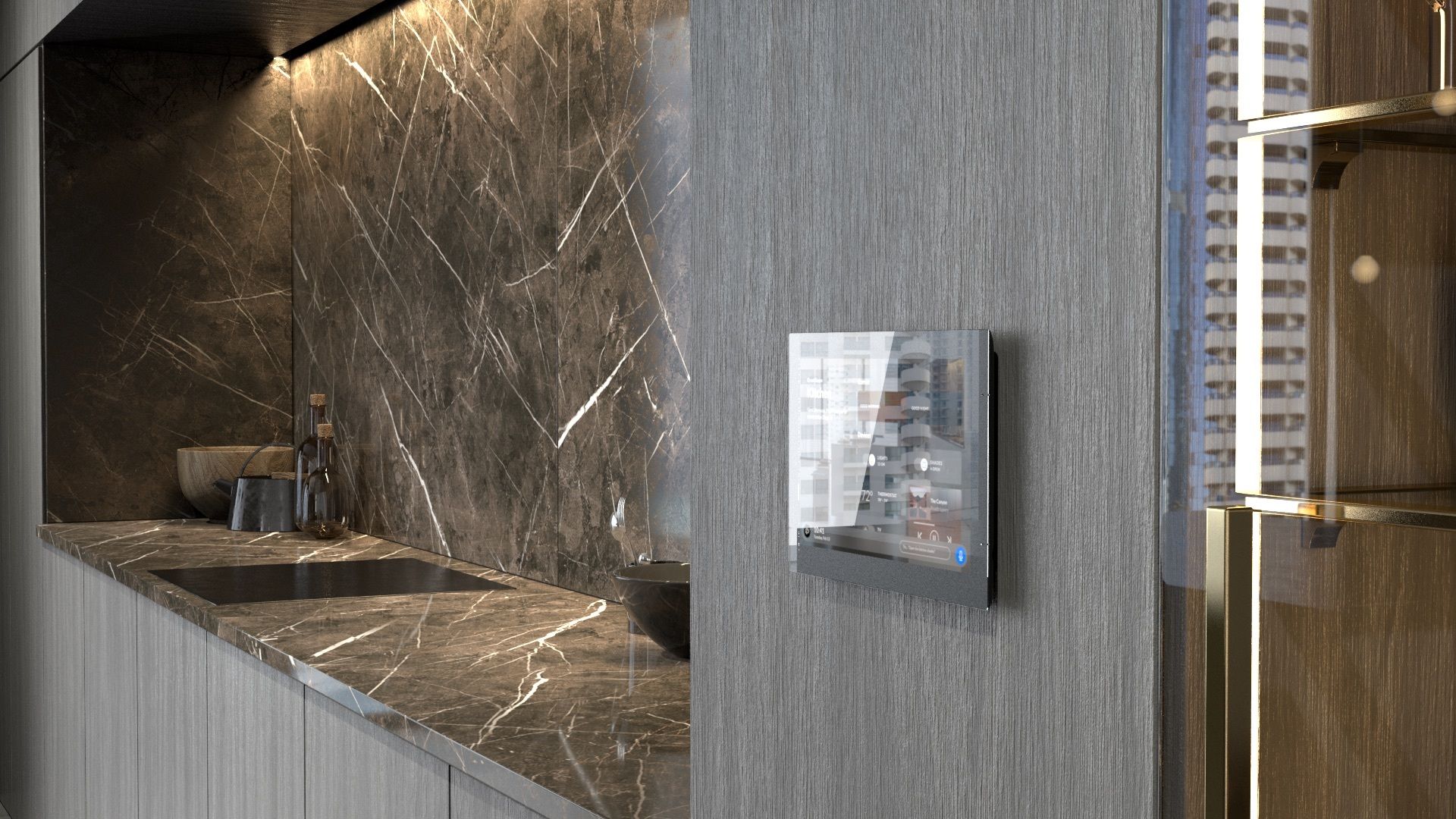

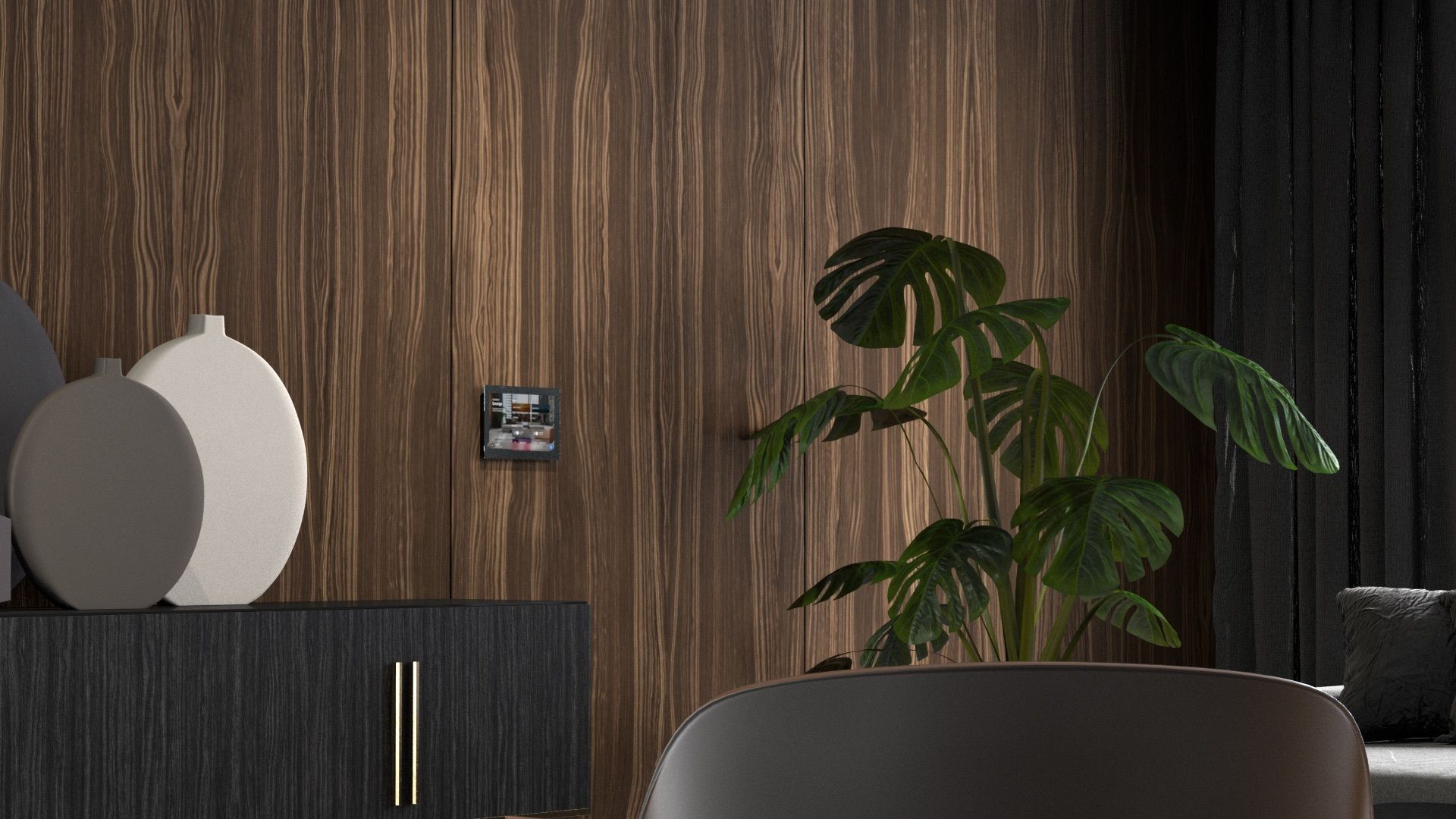

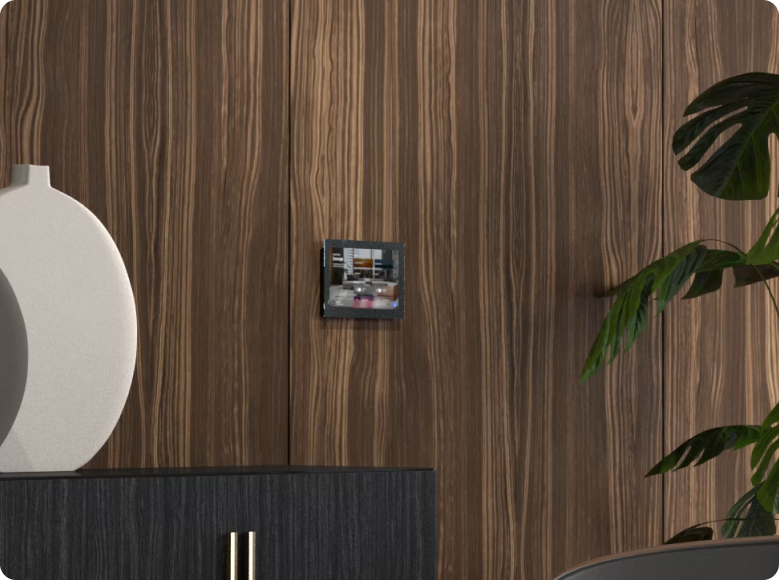

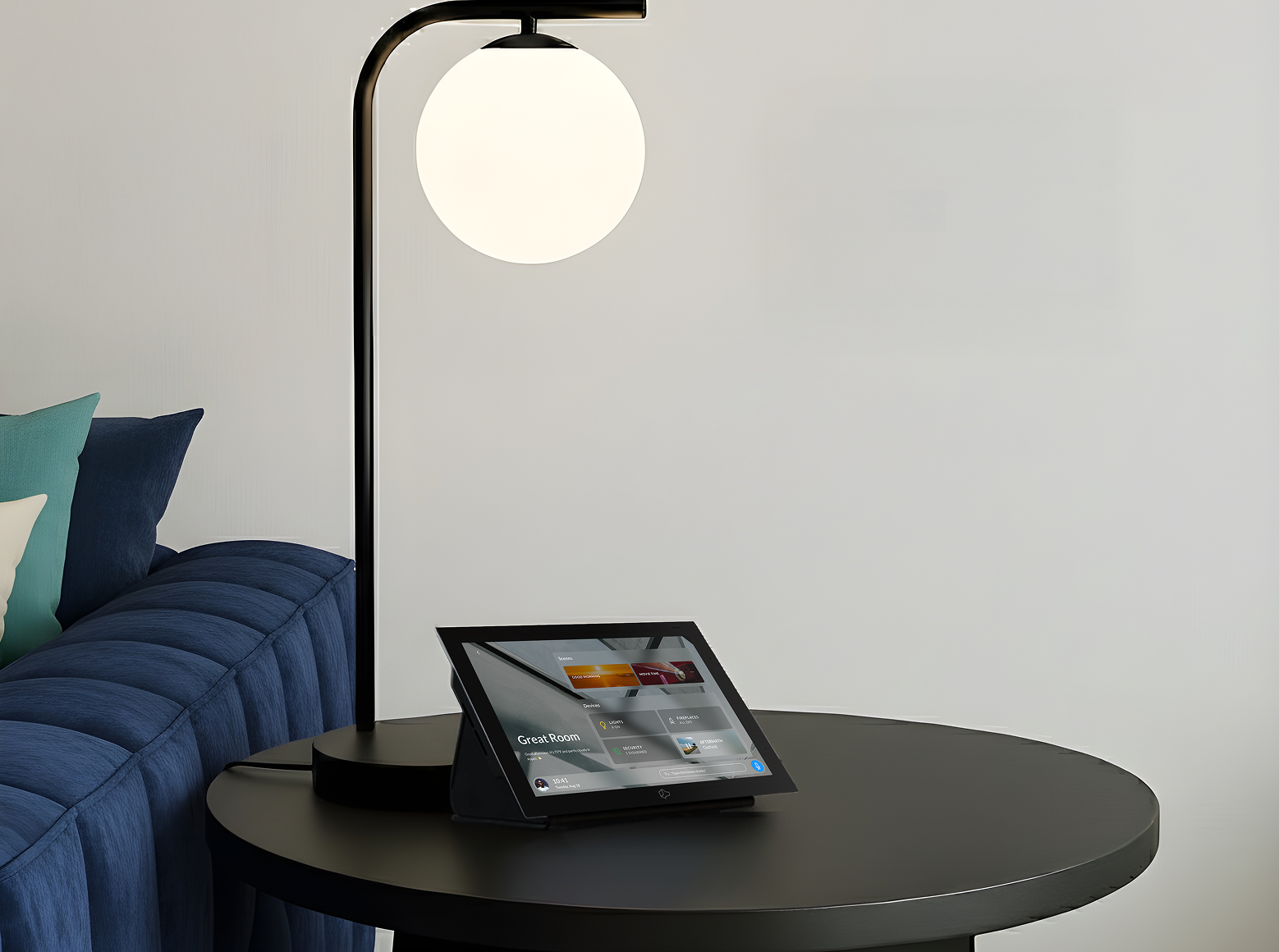

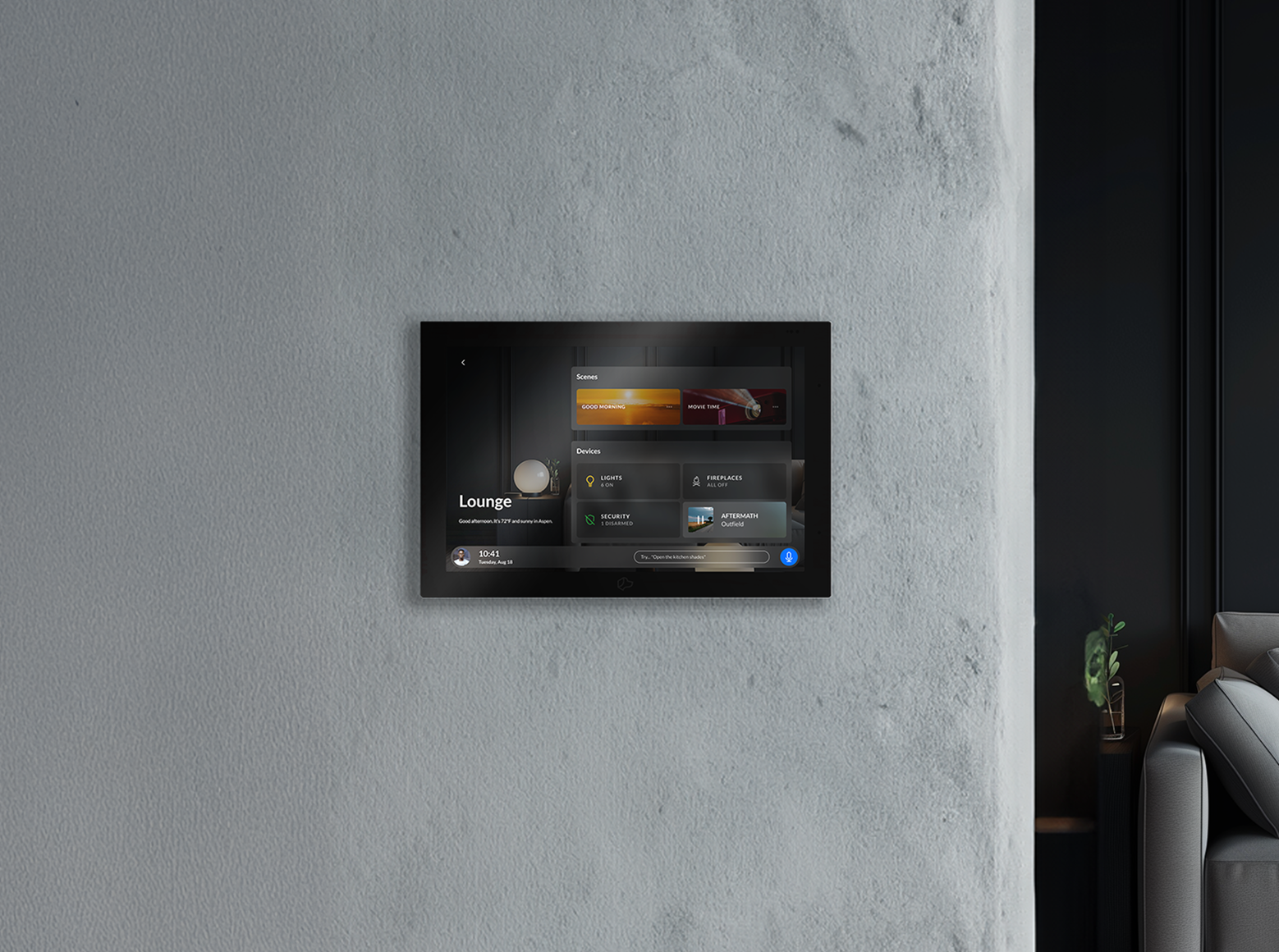

Flexibly wall-mount Josh Touchscreen in common areas and entryways, or position it on a nearby tabletop for instant access where you need it. Efficiently secure your home, start the day, or set the perfect mood for any occasion with the tap of a button.
Contextual Voice
Enjoy industry-leading voice control and intelligent assistance with JoshGPT through a tap-to-talk built-in voice button. Josh Touchscreen understands conversational commands and knows the floor plan of your property for location aware interactions.
"Dim the lights 50%."
"Raise the west shades on the first floor."
"Set the temperature to 70 degrees."
"Listen to Jazz in the Great Room."
"It's movie time."
Technical Specifications
Power
Low power, high performance architecture powered by Gigabit PoE
Resolution
800 x 1280 px (WXGA) screen resolution with brightness of 450 cd/m2
Sensors
Interactions optimized with proximity and ambient light sensors
Audio Processing
Equipped with high-performance DSP, acoustic echo cancellation, and ambient noise reduction
Installation
North American single-gang compatible with standard screwdriver
Privacy
Device control performed locally and voice processing computed on the edge
Required System Components
Josh.ai Software License
Josh.ai system processor
Enterprise grade network deployment
Josh.ai app (iOS & Android)
Included Items
1x Josh Touchscreen
Josh Touchscreen Assets

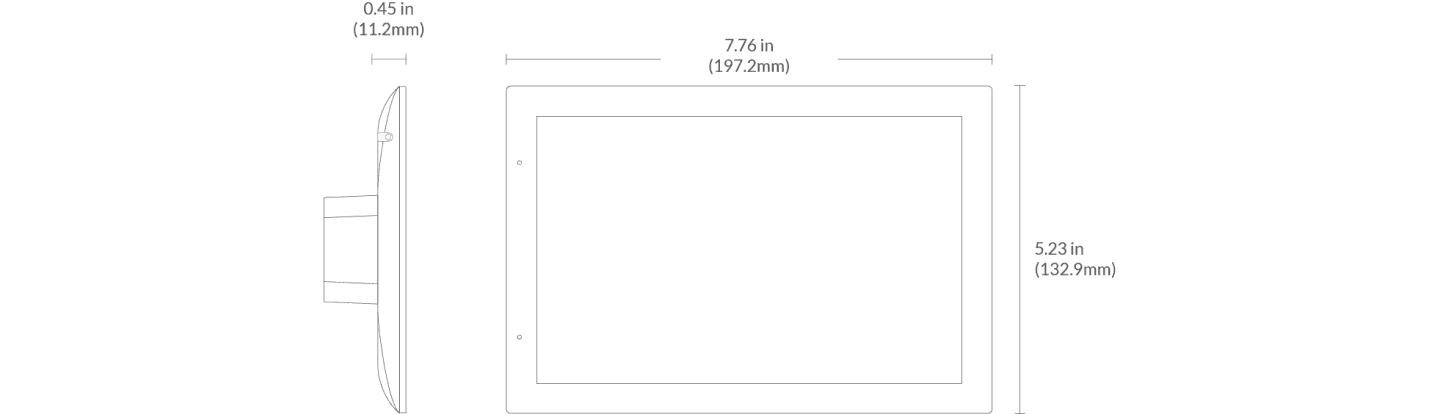

Download Press KitDownload .STL FileDownload Josh Touchscreen Spec SheetDimensions
Diagonal: 8 in (203 mm)
Width: 7.76 in (197.2mm)
Height: 5.23 in (132.9mm)
Depth (Outside): .45 in (11.5mm)
Depth (Inside Wall): .88 in (22.3mm)
Weight: 2.2 lbs (1 kg)
Power
Power: 24Vdc, 1 Amp
PoE voltage: dc, PoE 48V [37 to 57V]
Ethernet Network Connectivity:
IEEE 802.3 (10 / 100 Mbps)
