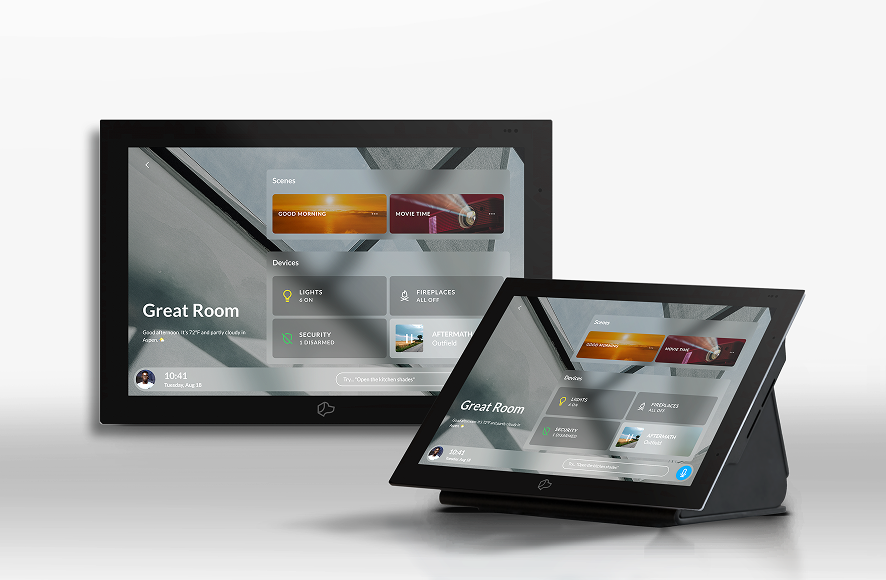

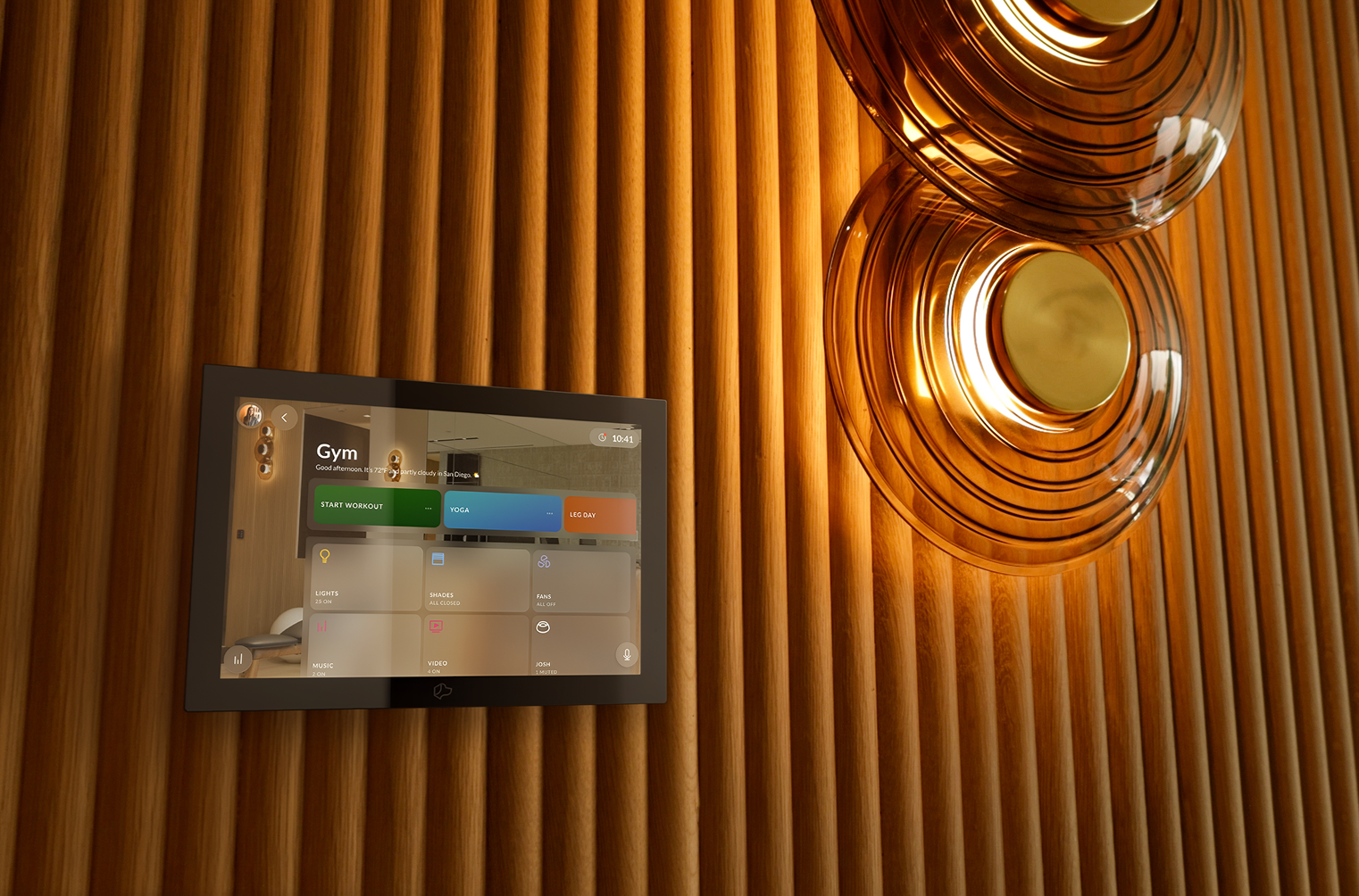

Josh Touchscreen

Convenient Control

Premium Finishes
Premium Finishes

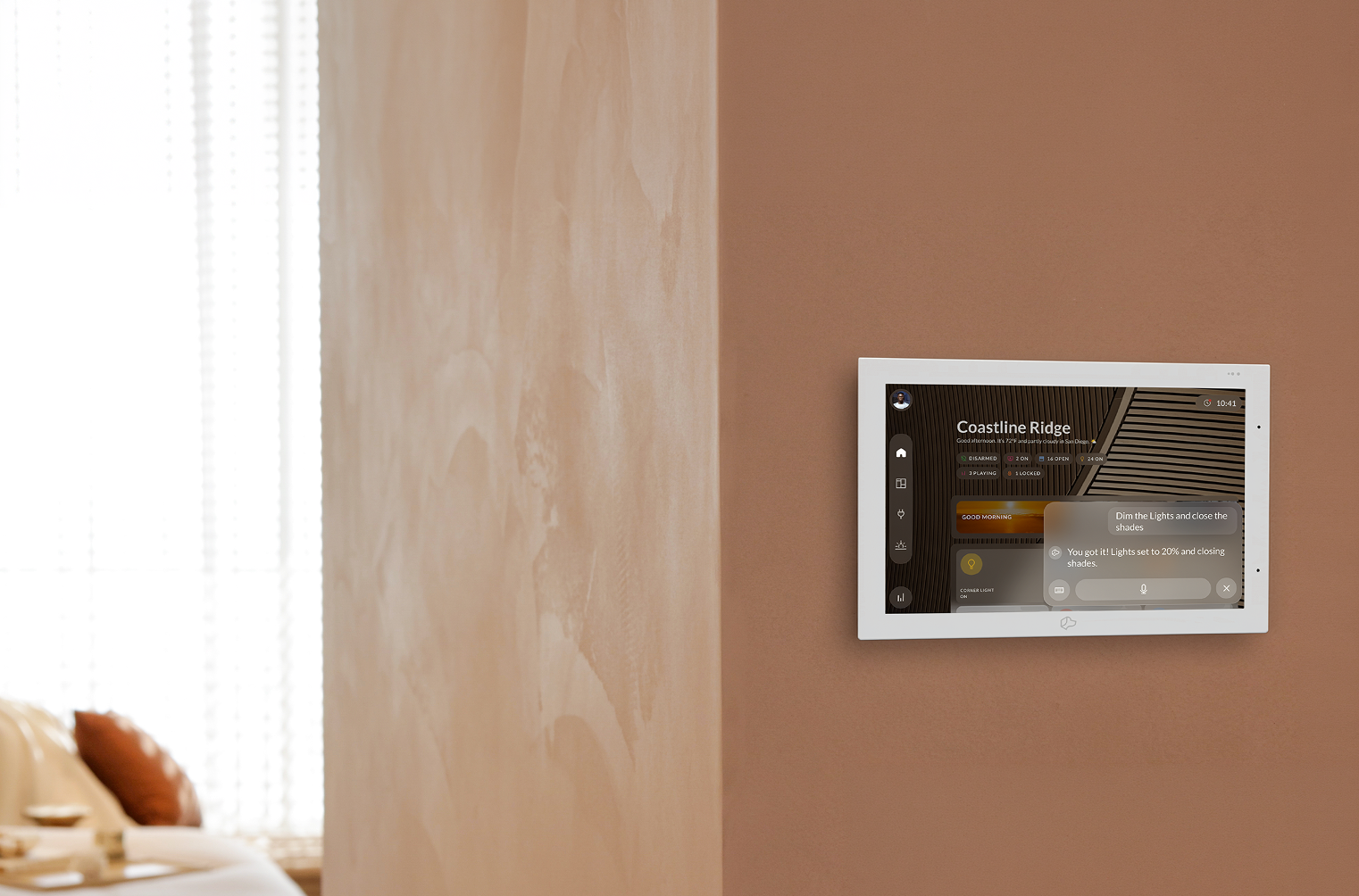

Contextual Voice

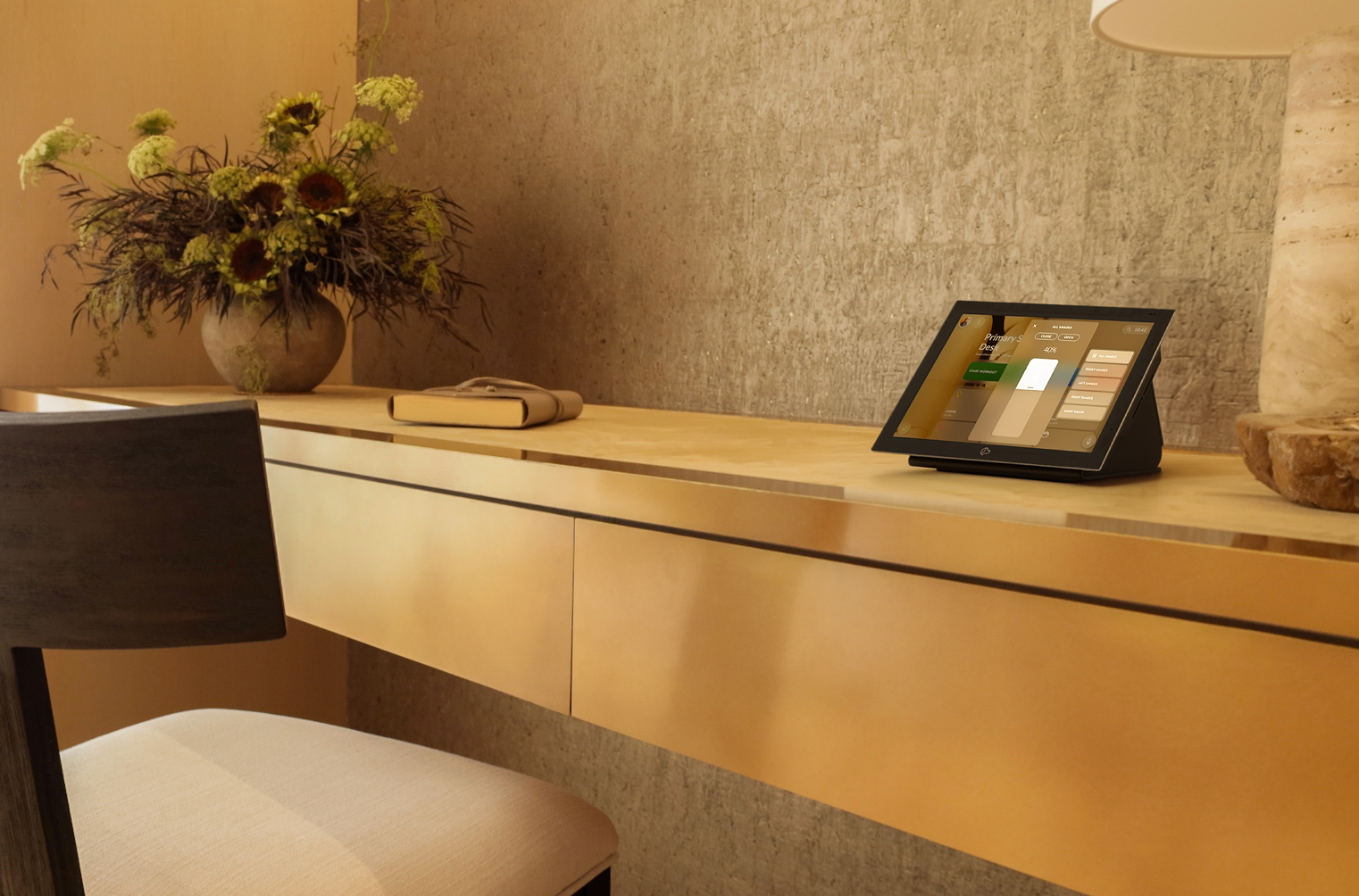

Versatile Design

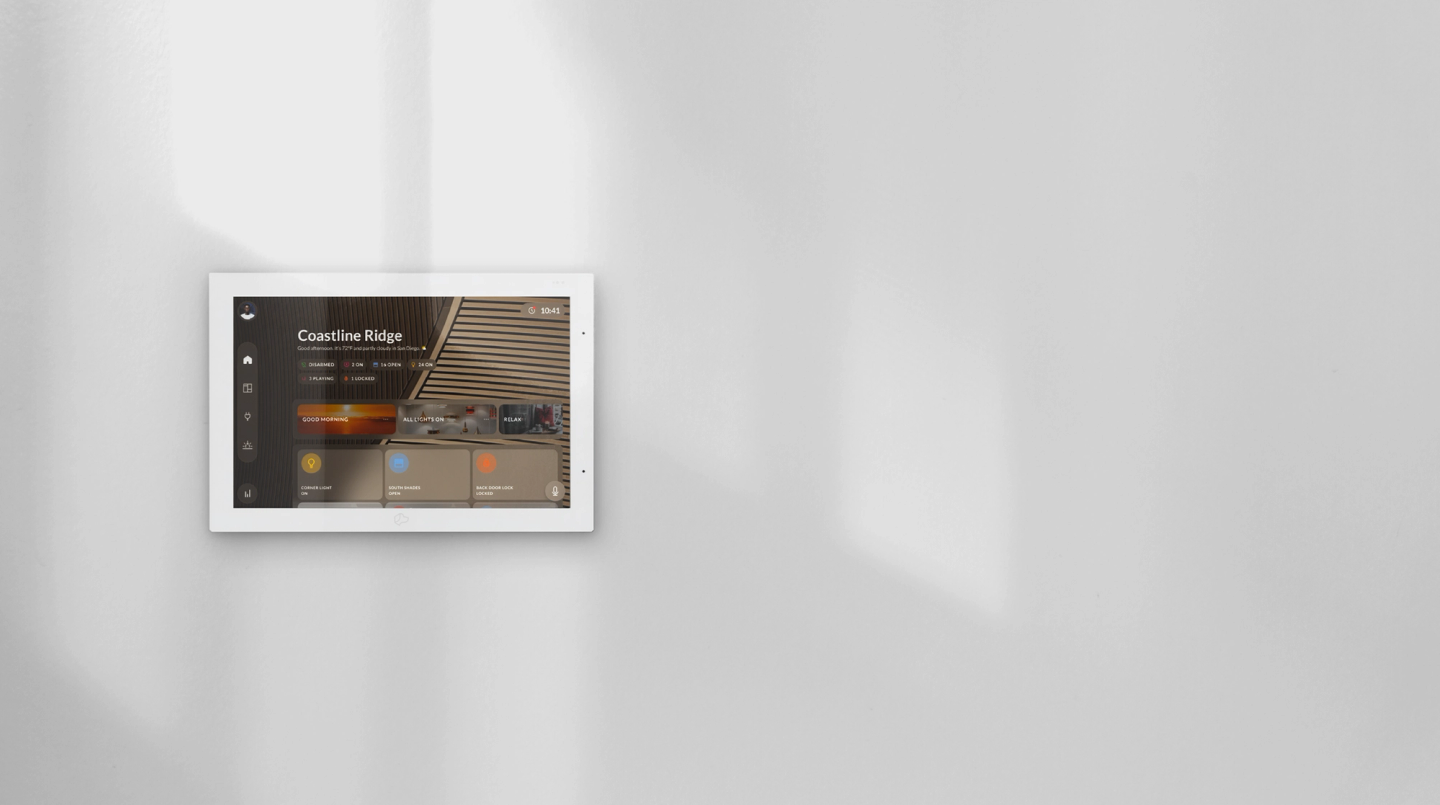

Perfect Fit
Perfect Fit

Technical Specifications 8"


Power
Low power, high performance architecture powered by Gigabit PoE
Resolution
800 x 1280 px (WXGA) screen resolution with brightness of 450 cd/m2
Sensors
Interactions optimized with proximity and ambient light sensors
Audio Processing
Equipped with high-performance DSP, acoustic echo cancellation, and ambient noise reduction
Installation
North American single-gang compatible with standard screwdriver
Privacy
Device control performed locally and voice processing computed on the edge
Required System Components
Josh.ai Software License
Josh.ai system processor
Enterprise grade network deployment
Josh.ai app (iOS & Android)
Included Items
1x Josh Touchscreen
Josh Touchscreen Assets

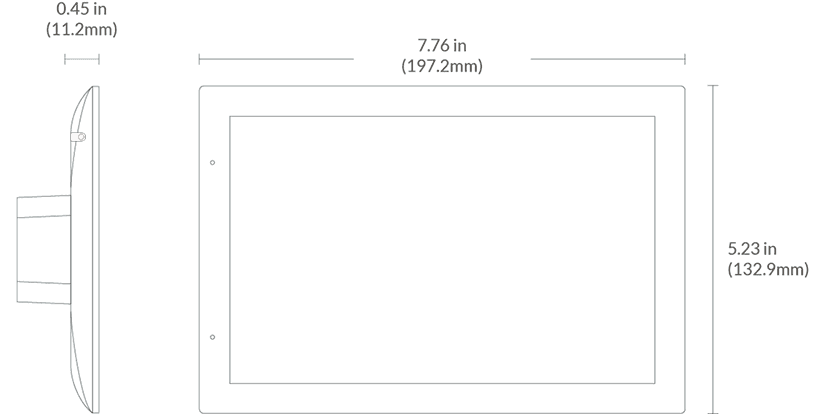

Download Press KitDownload .STL FileDownload Josh Touchscreen Spec SheetDimensions

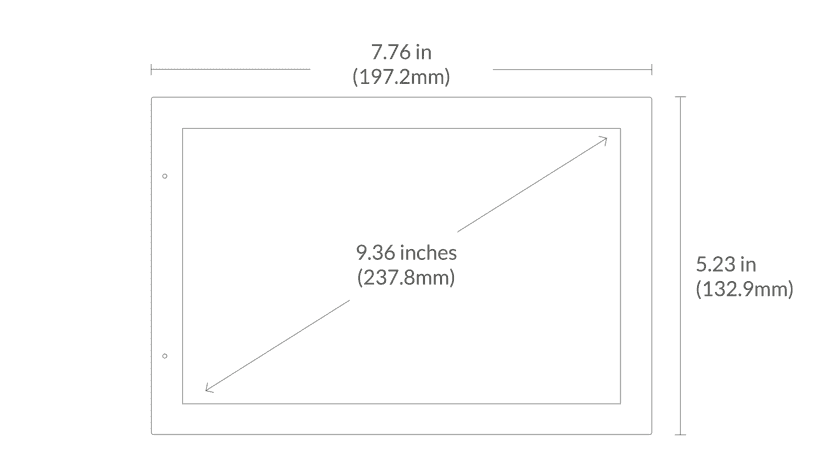

Diagonal: 8 in (203 mm)
Width: 7.76 in (197.2mm)
Height: 5.23 in (132.9mm)

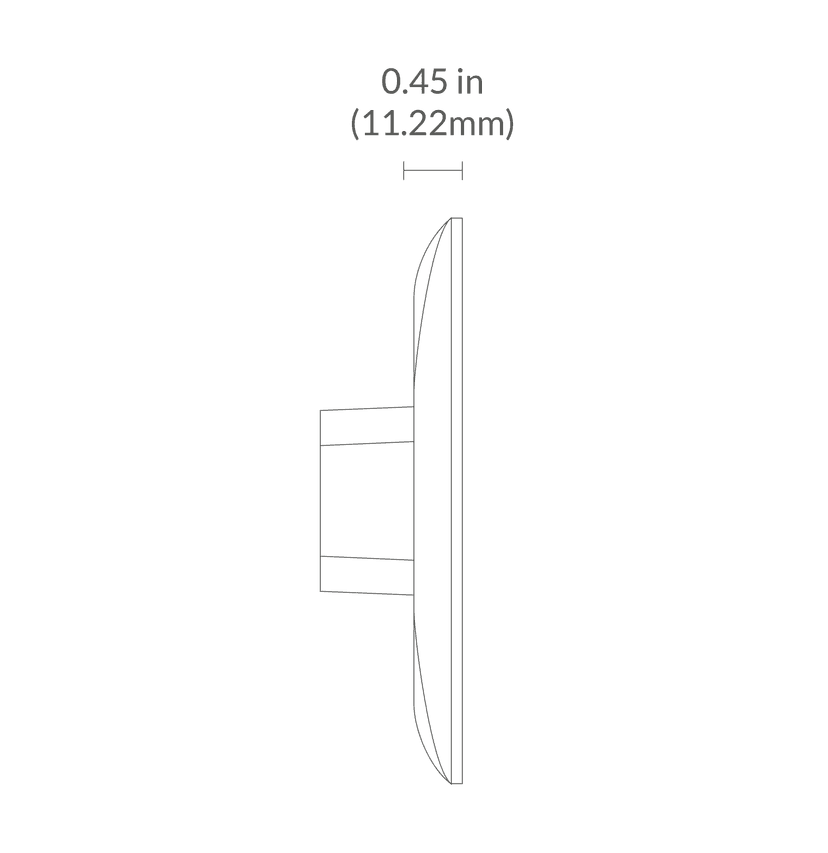

Depth (Outside): .45 in (11.5mm)
Depth (Inside Wall): .88 in (22.3mm)
Weight: 2.2 lbs (1 kg)
Power
Power: 24Vdc, 1 Amp
PoE voltage: dc, PoE 48V [37 to 57V]
Ethernet Network Connectivity:
IEEE 802.3 (10 / 100 Mbps)
